Circumscribed and Inscribed Circles

How to construct Soddy circles. Move the gray dots!

Bisectors and distances

There are infinitely many ways to measure the distance between a point and a line. For the sake of simplicity, the distance between a point and a line is defined to be the shortest distance, that is the perpendicular distance.

The distance between a point and a line, between a point on an angle bisector and the sides of the angle, between a point on a perpendicular bisector and the two points.

For angle bisectors and perpendicular bisectors, the following is true:

  • A point on an angle bisector is equidistant from the sides of the angle.
  • A point on a perpendicular bisector of two points, is equidistant from the points.

The three perpendicular bisectors of a triangle intersect at one point. The three angle bisectors intersect at another point.

Intersection of angular bisectors and perpendicular bisectors.

Exercises

The circumscribed circle


Create a triangle.

Given any triangle, it is always possible to find a circle such that all the vertices of the triangle lie on the circle. This is the so called circumscribed circle.

Use one of the points shown above as the midpoint of the circle. This point is called the circumcenter of the triangle. Explain why the construction works!

The inscribed circle


Given any triangle, it is always possible to find a circle inside the triangle such that the circle is tangent to each of the three sides of the triangle. This is the so called inscribed circle.

Use one of the points shown above as the midpoint of the circle. This point is called the incenter of the triangle. Use the fact that the incscribed circle must be tangent to the sides of the triangle to construct the circle. Explain why the construction works!

Three circles


Given three points, that are not collinear, it is always possible to construct three circles that are mutually externally tangent to each other. Two circles are externally tangent, if they have a tangent in common and lie on opposite sides of this tangent.

Use the construction of the inscribed circle to construct three circles tangent to each other. Explain why the construction works!

Soddy circles


Given three circles that are mutually externally tangent to each other, it is always possible to construct two new circles that are tangent to each of the three circles. These two new circles are so called Soddy circles. This is a special case of circles of Apollonius.

Start with a triangle and three tangent circles.

Draw perpendicular lines from the midpoints of the circles, lines that are perpendicular to the opposite triangle side. Each such line intersects its circle in two point, create these intersection points. These three lines and six points, are blue in the picture below.

Make the intersection points of the circles, the points of tangency. Each circle has an opposite point of tangency. These points are yellow in the picture below.

The points of tangencies are yellow. The perpendicular lines and the corresponding intersection points are blue.

Each circle has two blue points. For each circle, draw two lines between each blue point and the opposite point of tangency. These lines are red for one of the circles in the picture below.

The red lines intersect its circle in one new point each. Create these intersection points. These intersection points are red, for one of the circles, in the picture below.

Create two such lines, and the corresponding intersection points, for each of the three circles.

The red lines, and the corresponding intersection points, are shown for one of the circles.

There are now six red points. Use the tool Circle through Three Points to construct the two Soddy circles.

The Soddy circles are constructed from the red points.

Since tangent circles remain tangent to each other when being reflected in a circle, it is possible to make repetitive patterns. The easiest way to make a repetitive pattern, is to use the command Reflect in the spreadsheat. One such example is shown in the applet at the top.

A square inscribed in a triangle

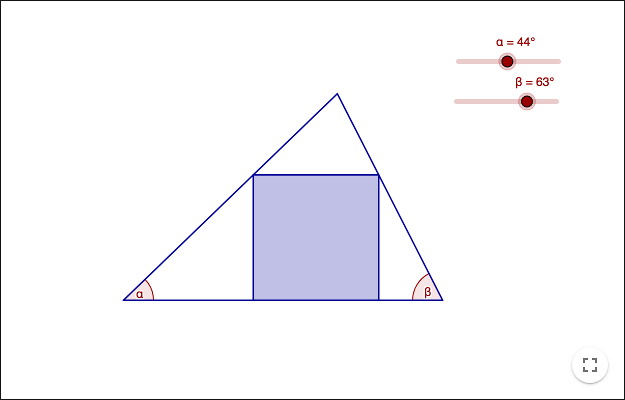

Square inscribed in a triangle.

Given an acute triangle you can always find a square having its vertices on the sides of the triangle.

Solve the problem in following steps:

Is there an easy way of inserting a square in a triangle such that two of the vertices lie on sides of the triangle?

Is there an easy way of inserting a square in a triangle such that three of the vertices lie on sides of the triangle?

In what way does the fourth vertex move when the square is altered? Find the pattern! Make a conjecture about the position of the fourth vertex.

Napoleon's Theorem

Start with: A triangle ΔABC.

Construct: Three regular triangles along the sides of the original triangle, the regular triangles should point outwards. Find the centers of the three regular triangles (The centers are the midpoints of the circumscribed circles, the so called circumcenter) Make a new triangles through the centers. Make a conjecture about the new triangle.

further info:

The inscribed square problem is mentioned in "How to solve it" by George PĆ³lya

Khan Academy: Point Line Distance and Angle Bisectors

The construction of the circles of Apollonius from The Geometry Junkyard: Apollonian circles

Wolfram MathWorld: Soddy Circles

In the general case, having three circles that are not mutually tangent, it is possible to construct eight circles that are tangent to each of the three circles. See Wolfram MathWorld: Apollonius Circle

Soddy presented his formula about the circles as a poem: The Kiss Precise
