Rolling Hypocycloids and Epicycloids

Malin Christersson ◊◊◊

Press a to make more shapes,
or click on the icon.
more
Press s to make fewer shapes,
or click on the icon.
fewer
Press w to change colours,
or click on the icon.
color
Move the mouse (or touch drag) to roll the shapes.
Hypocycloids
Epicycloids
Distorted hypocycloids
Distorted epicycloids

Explanation

Hypocycloids and epicycloids are curves traced out by a point on a circle rolling on the inside or outside of another circle. These curves are special cases of hypotrochoids and epitrochoids (the cases when \(d=r\) using the notation from the side Make a Spirograph).

Let \(r\) be the radius of the rolling circle and \(R\) the radius of the fixed circle, then all curves having the same ratio \(R:r\) have the same shape. When the ratio \(R:r\) is an integer, as in the GeoGebra-example below, the curve traced out as the smaller circle rolls one revolution around the large circles is a closed curve. Furthermore, if the ratio is an integer \(n\) then the curves have \(n\) edges called cusps.

By letting the rolling circles have a smaller radius, thus smoothening the cusps, distorted versions of the curves are created

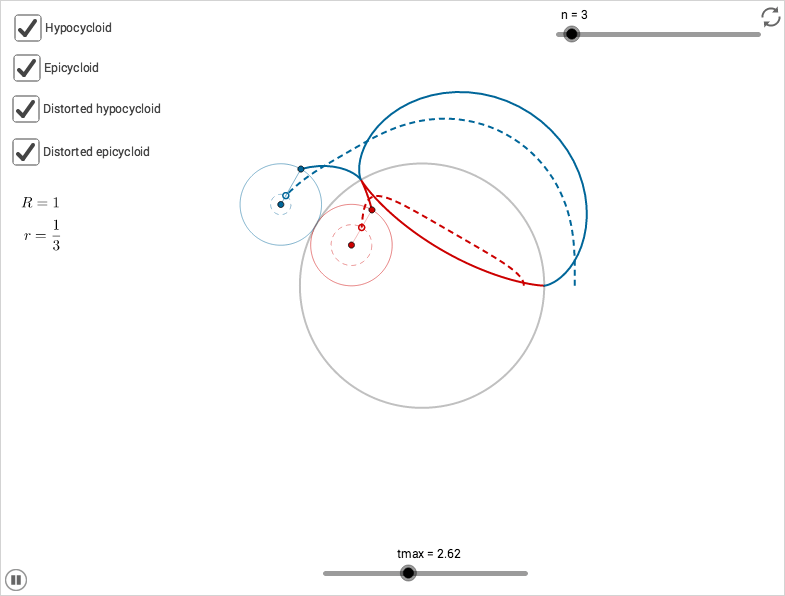

Interactive red hypocycloid and blue epicycloid

In the GeoGebra-example above, the equation for the hypocycloid is

\[ \begin{align*} x(t) &= \frac{(n - 1) \cos(t) + \cos((n - 1) t)}{n} \\ y(t) &= \frac{(n - 1) \sin(t) - \sin((n - 1) t)}{n} \end{align*} \]

and for the epicycloid it is

\[ \begin{align*} x(t) &= \frac{(n + 1) \cos(t) - \cos((n + 1) t)}{n} \\ y(t) &= \frac{(n + 1) \sin(t) - \sin((n + 1) t)}{n}. \end{align*} \]

Rolling on the inside

A hypocycloid (or epicycloid) with \(n\) cusps can move inside a hypocycloid (or epicycloid) with \(n+1\) cusps in such a way that the cusps of one of the curves always touches the other curve.

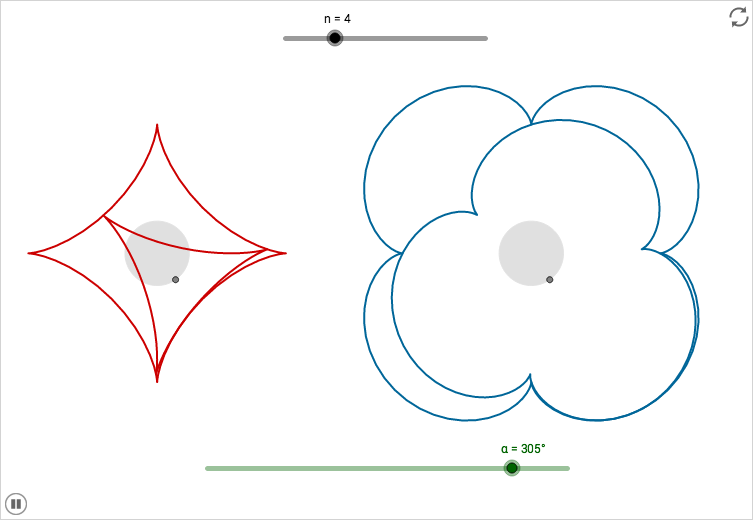

Red hypocycloids and blue epicycloids rolling on the inside.

By repeating this pattern, examples such as the Javascript-examples above can be made.

Rolling on the outside

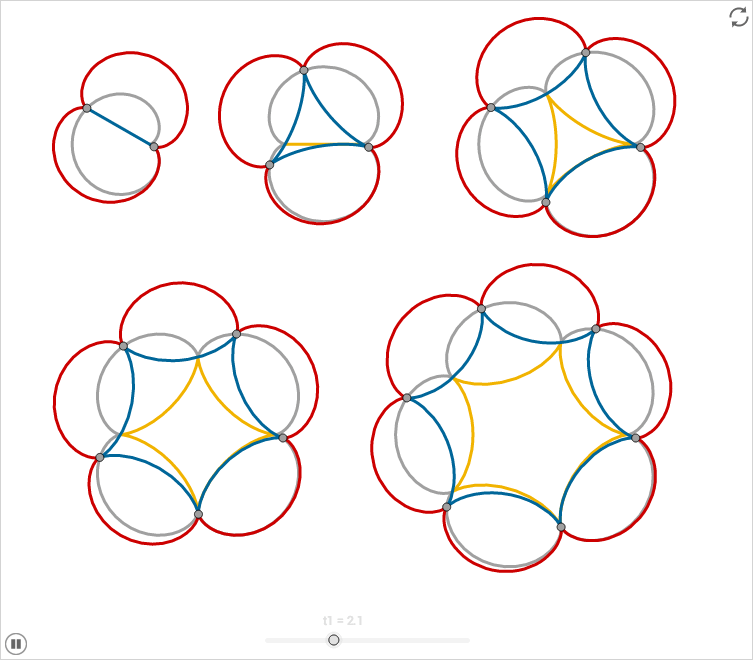

The cusps of a \((n+1)\)-hypocycloid, rolling on the outside of a \(n\)-hypocycloid, traces out a \(n\)-epicycloid.

Explanation:
If you roll a \(n\)-epicycloid on the inside of a \((n+1)\)-epicycloid, the cusps of the outer epicycloid lie on the inner epicycloid. So if you instead roll epicycloids on the outside, the cusps of the \((n+1)\)-epicycloid (red below) will glide along the inner \(n\)-epicycloid. Since the cusps of \((n+1)\)-epicycloids are the same points as the cusps of \((n+1)\)-hypocycloids, we get that the cusps of a hypocycloid outlines an epicycloid when rolling on the outside.

Demonstration.

Animated gifs

Distorted epicycloids and hypocycloids on tumblr.

Rolling epicycloids (black and white) on tumblr.

Rolling hypocycloids (black and white) on tumblr.

References

Ideas from the discussion by John Baez and others at: Azimuth - Rolling Hypocycloids.
